Features
n Supports Intel® J6412,N97 & 4th ~ 12th Gen U-Series CoreTM
i3/i5/i7 processors
n LCD+HDMI dual displays
n IP65-rated front panel

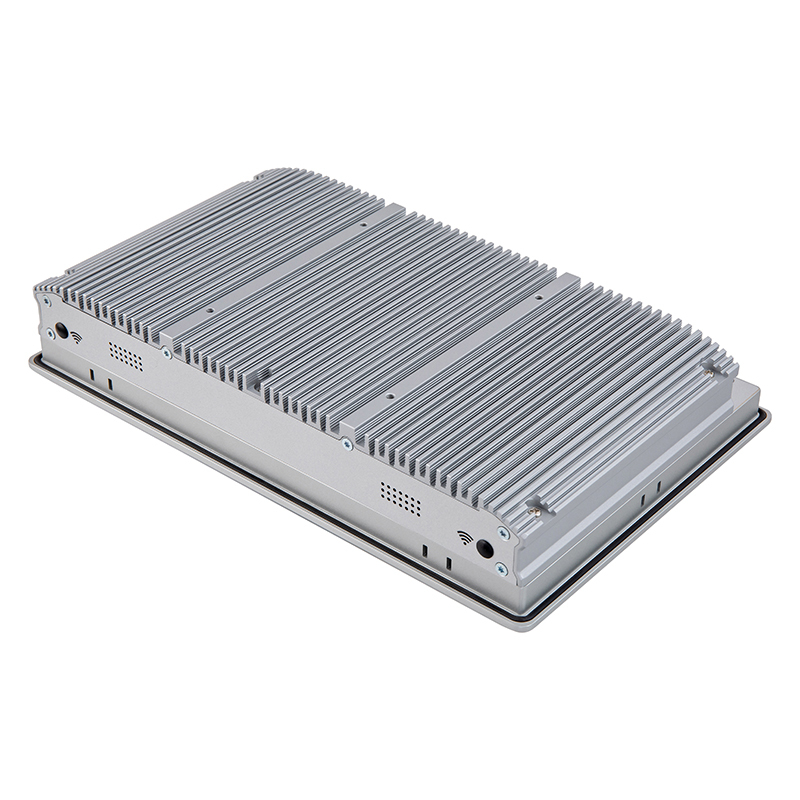

n Fanless design with aluminum alloy enclosure
n 9~36V Wide Range DC input
| System |
| |
| Model | FPM-1001M | |
| Processor *1 | lntel® J6412,N97 & 4th~12th Gen U-Series CoreTM i3/i5/i7 | |
| Memory *2 | The memory type is determined by the CPU model | |
| Ethernet | 2 x GbE RJ45 intel i210-AT | |
|

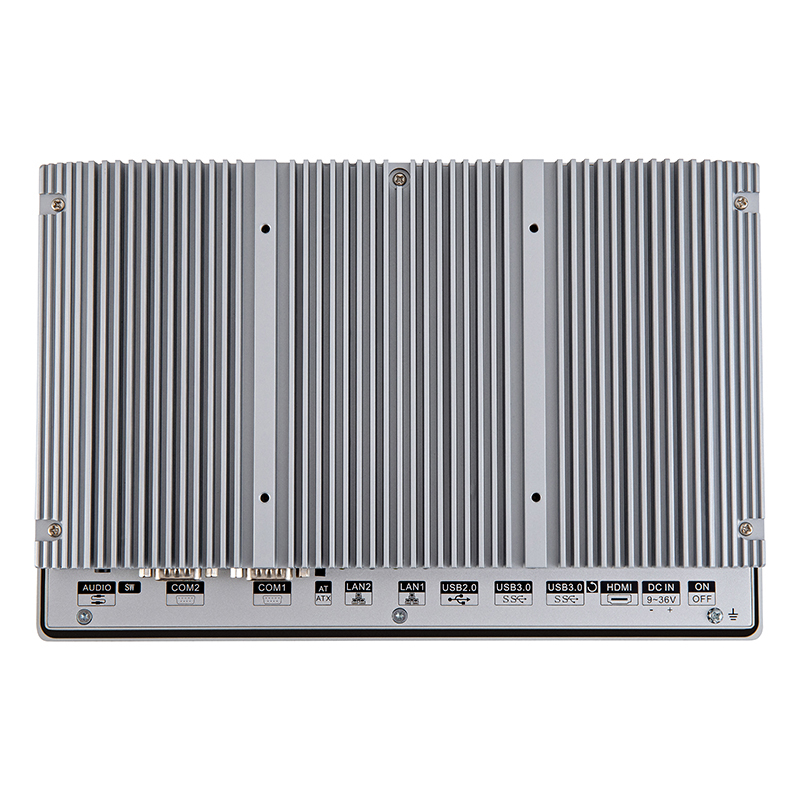

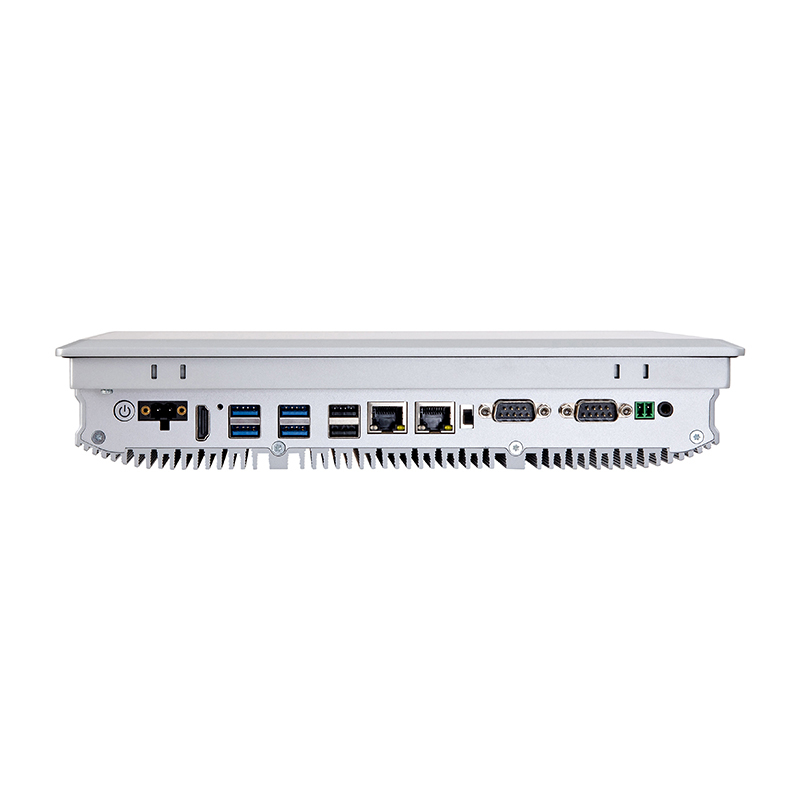

I/O Port | 4 x USB3.0, 2 x USB2.0 2 x DB-9 COM1&COM2,RS-232/485 1 x Audio Line-out/Mic-in 2 x 8Ω 1W Audio AMP out(Optional) 1 x Remote switch Phoenix 1 x AT/ATX Switch 1x HDMI 1x IDOOR ( 2xLAN / 4xCOM / 14xGPIO Optional ) | |
| Storage *3 | 1 x M.2 2280 SSD ( SATA/NVMe ) 1x SATA( 2.5”SATA) | |
| Expansion Slot | Mini-PCle x 1 full size with SIM Card for 3G/4G M.2 Key E x 1 for WIFI/BT M.2 Key B x 1 for 5G | |
| Watchdog timer | 255 Levels | |
| OS Support | Windows® 10/11,Linux | |
| Mechanical |
| |
| Construction | Aluminum Design | |
| Mounting | VESA 100/ Panel Mount | |
| Dimension | 283.2.0 x 186.9 x 56.1 mm | |
| Gross Weight | TBD | |
| Environmental |
| |
| Operating Temperature | -20℃~70℃ | |
| Storage Temperature | -30℃~70℃ | |
| Storage Humidity | 10~90%@30℃, non-condensing | |
| Power Supply |
| |
| DC input | DC 9~ 36V 2-pin Phoenix Connector | |
| LCD |
| |

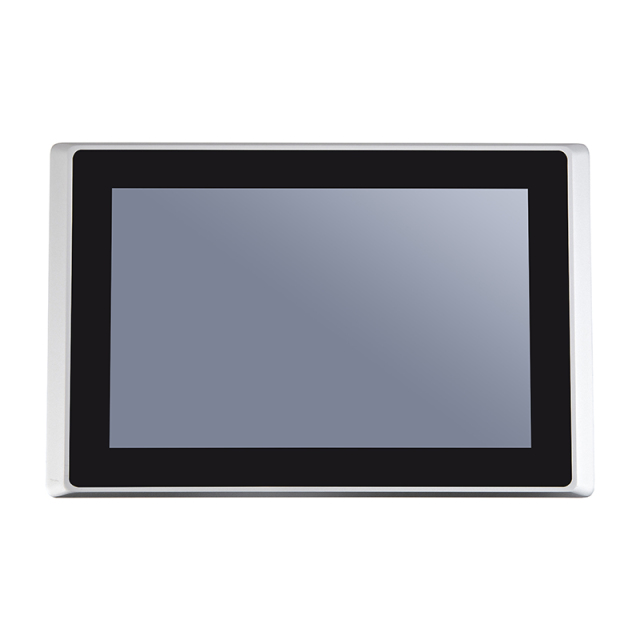

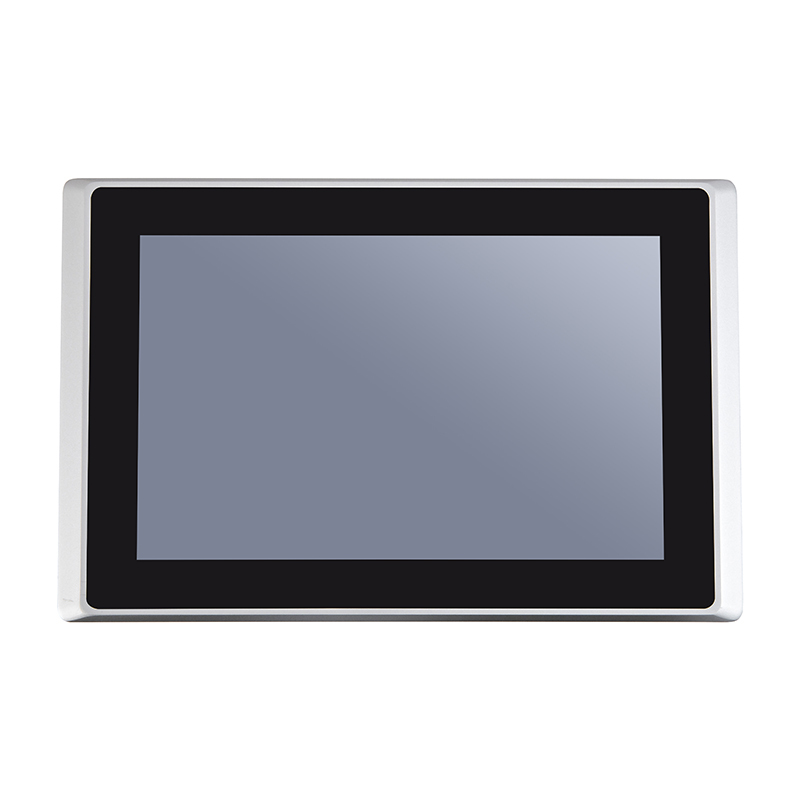

| Display Type | 10.1”TFT-LCD | |
| Resolution | 1280 x 800 | |
| Max.Colors | 16.7M | |
| Luminance | 430 cd/m2 | |
| Viewing Angle (CR>=10) | -85～85°(H),-85~85° (V) | |
| Back Light | LED | |
| Back Light MTBF(Hours) | 34,000 | |
| Touchscreen |
| |
| Type | Flat 5-wire Resistive | P-CAP Multi Touch |
| Light Transmission | 78% | >85% |
| Life Time | >5 million activations | 7H |
|
