Features
n Supports Intel® J6412,N97 & 4th ~ 12th Gen U-Series CoreTM
i3/i5/i7 processors
n LCD+HDMI dual displays
n IP65-rated front panel
Fanless design with aluminum
Specifications
|
Model |
FPM-1201M |
|
|
Processor *1 |
lntel® J6412,N97 & 4th~12th Gen U-Series CoreTM i3/i5/i7 |
|
|
Memory *2 |
The memory type is determined by the CPU model |
|
|
Ethernet |
2 x GbE RJ45 intel i210-AT |
|
|

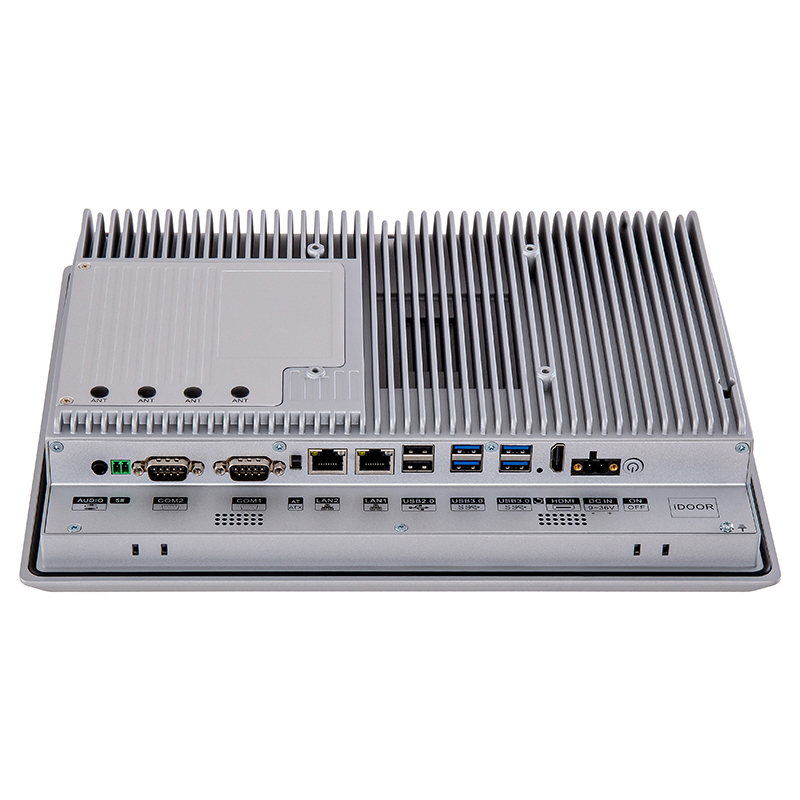

I/O Port |
4 x USB3.0, 2 x USB2.0 2 x DB-9 COM1&COM2,RS-232/485 1 x Audio Line-out/Mic-in 2 x 8Ω 1W Audio AMP out(Optional) 1 x Remote switch Phoenix 1 x AT/ATX Switch 1x HDMI 1x IDOOR ( 2xLAN / 4xCOM / 14xGPIO Optional ) |
|
|
Storage *3 |
1 x M.2 2280 SSD ( SATA/NVMe ) 1x SATA( 2.5”SATA) |
|
|
Expansion Slot |
Mini-PCle x 1 full size with SIM Card for 3G/4G M.2 Key E x 1 for WIFI/BT M.2 Key B x 1 for 5G |
|
|
Watchdog timer |
255 Levels |
|
|
OS Support |
Windows® 10/11,Linux |
|
|
Mechanical |
|
|
|
Construction |
Aluminum Design |
|
|
Mounting |
VESA 100/ Panel Mount |
|
|
Dimension |
318.8 x 245.0 x 57.2 mm |
|
|
Gross Weight |
TBD |
|
|
Environmental |
|
|
|
Operating Temperature |
-20℃~70℃ |
|
|
Storage Temperature |
-30℃~80℃ |
|
|
Storage Humidity |
10~90%@30℃, non-condensing |
|
|
Power Supply |
|
|
|
DC input |
DC 9~ 36V 2-pin Phoenix Connector |
|
|
LCD |
|
|
|
Display Type |
12.1”TFT-LCD |
|
|
Resolution |
1024 x 768 |
|
|
Max.Colors |
16.7M |
|
|
Luminance |
500 cd/m2 |
|
|
Viewing Angle (CR>=10) |
-88～88°(H),-88~88° (V) |
|
|
Back Light |
LED |
|
|
Back Light MTBF(Hours) |
50,000 |
|
|
Touchscreen |
|
|
|
Type |
Flat 5-wire Resistive |
P-CAP Multi Touch |
|
Light Transmission |
78% |
>85% |
|
Life Time |
>5 million activations |
7H |
