Features
n Supports Intel® J1900, J6412,N97 CPU
n LCD+HDMI dual displays
n IP65-rated front panel

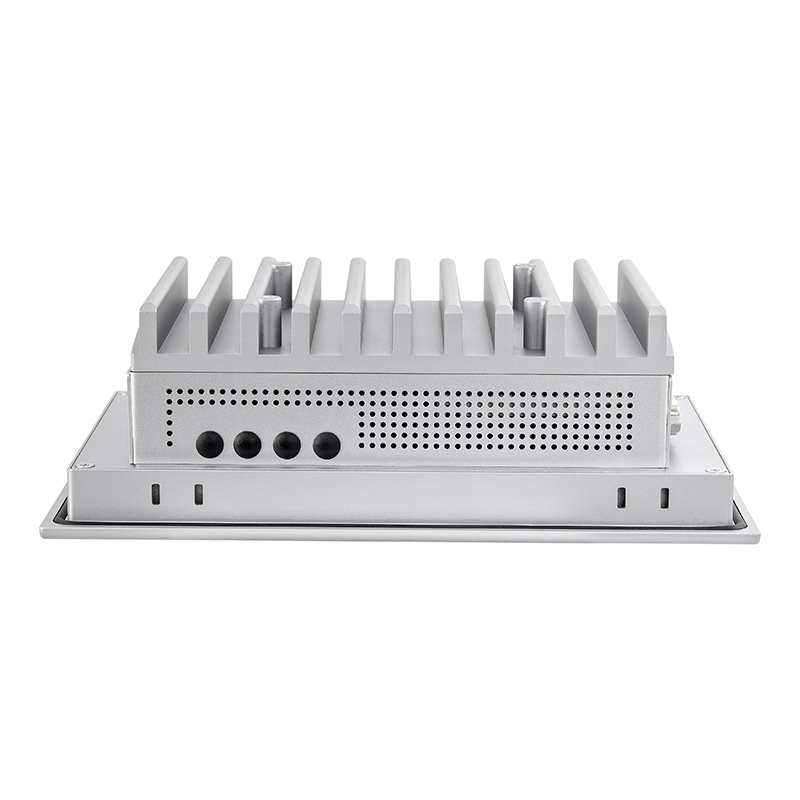

n Fanless design with aluminum alloy enclosure
n 800 x 480 / 1024 x600
Specifications
|
System |
|
|
|
Model |
FPM-7000M |
|
|
Processor *1 |
J1900: 4-Core up to 2.42GHz J6412: 4-Core up to 2.60GHz N97: 4-Core up to 3.60GHz |
|
|
Memory *2 |
The memory type is determined by the CPU model |
|
|
Ethernet |
2 x GbE RJ45 intel i210-AT |
|
|

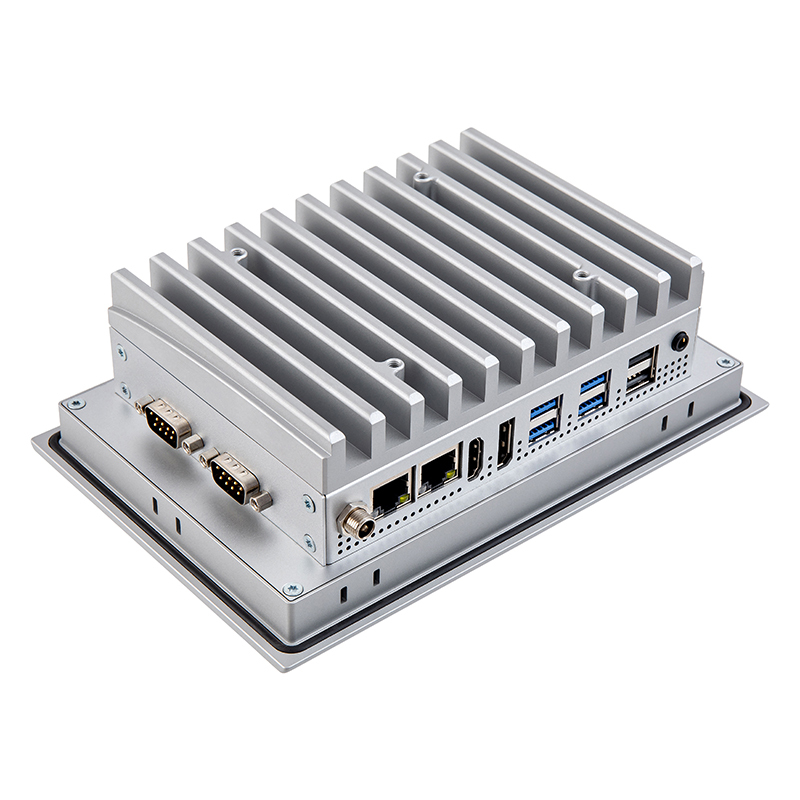

I/O Port |
4 x USB3.0, 2 x USB2.0 2 x DB-9 COM1&COM2,RS-232/485 1 x Audio Line-out/Mic-in 1 x DP 1 x HDMI 1 x 1 x Remote switch Phoenix |
|
|
Storage *3 |
1 x M.2 2280 SSD ( SATA/NVMe ) |
|
|
Expansion Slot |
M.2 Key B x 1 for 5G M.2 Key E x 1 for WIFI/BT |
|
|
Watchdog timer |
255 Levels |
|
|
OS Support |
Windows® 7/10/11,Linux |
|
|
Mechanical |
|
|
|
Construction |
Aluminum Design |
|
|
Mounting |
VESA 75/ Panel Mount |
|
|
Dimension |
200.2 x 134.8 x 64.0 mm |
|
|
Gross Weight |
TBD |
|
|
Environmental |
|
|
|
Operating Temperature |
0℃~60℃ |
|
|
Storage Temperature |
-20℃~70℃ |
|
|
Storage Humidity |
10~90%@30℃, non-condensing |
|
|
Power Supply |
|
|
|
DC input |
DC 12V |
|
|

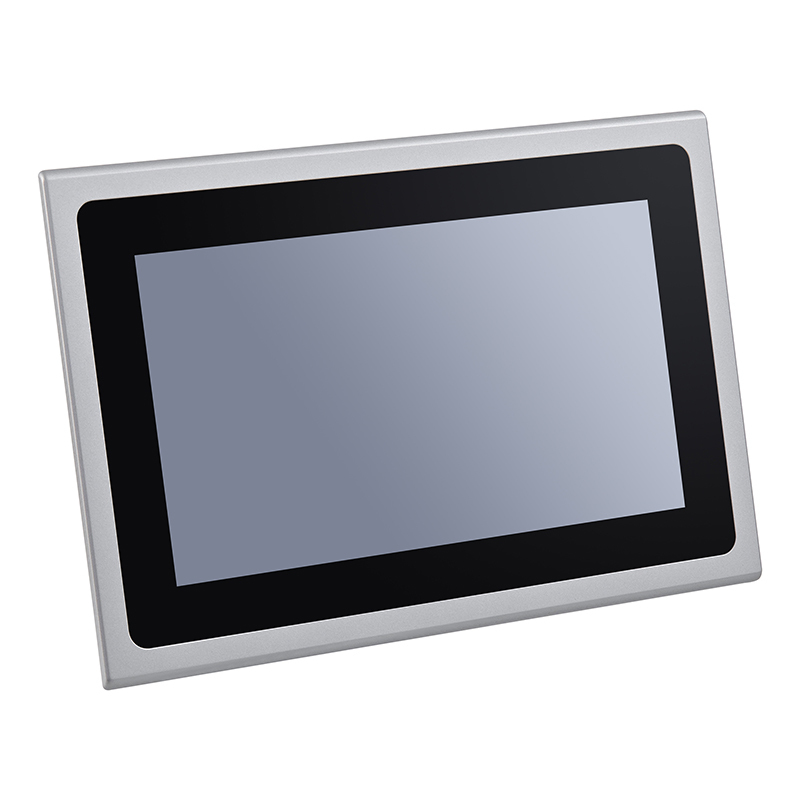

LCD |
|
|
|
Display Type |
7”TFT-LCD |
|
|
Resolution |
800 x 480 ( Optional 1024x600 ) |
|
|
Max.Colors |
16.2M |
|
|
Luminance |
350 cd/m2 |
|
|
Viewing Angle (CR>=10) |
-70～70°(H),-50~70° (V) |
|
|
Back Light |
LED |
|
|
Back Light MTBF(Hours) |
35,000 |
|
|
Touchscreen |
|
|
|
Type |
Flat 5-wire Resistive |
P-CAP Multi Touch |
|
Light Transmission |
78% |
>85% |
|
Life Time |
>5 million activations |
7H |
