Features
n Supports Intel® J1900, J6412,N97 CPU
n LCD+HDMI dual displays
n IP65-rated front panel
n Fanless design with aluminum alloy enclosure
n 9~36V Wide Range DC input
Specifications
|
System |
|
|
|
Model |
FPM-8000M |
|
|
Processor *1 |
J1900: 4-Core up to 2.42GHz J6412: 4-Core up to 2.60GHz N97: 4-Core up to 3.60GHz |
|
|
Memory *2 |
The memory type is determined by the CPU model |
|
|
Ethernet |
2 x GbE RJ45 intel i210-AT |
|
|

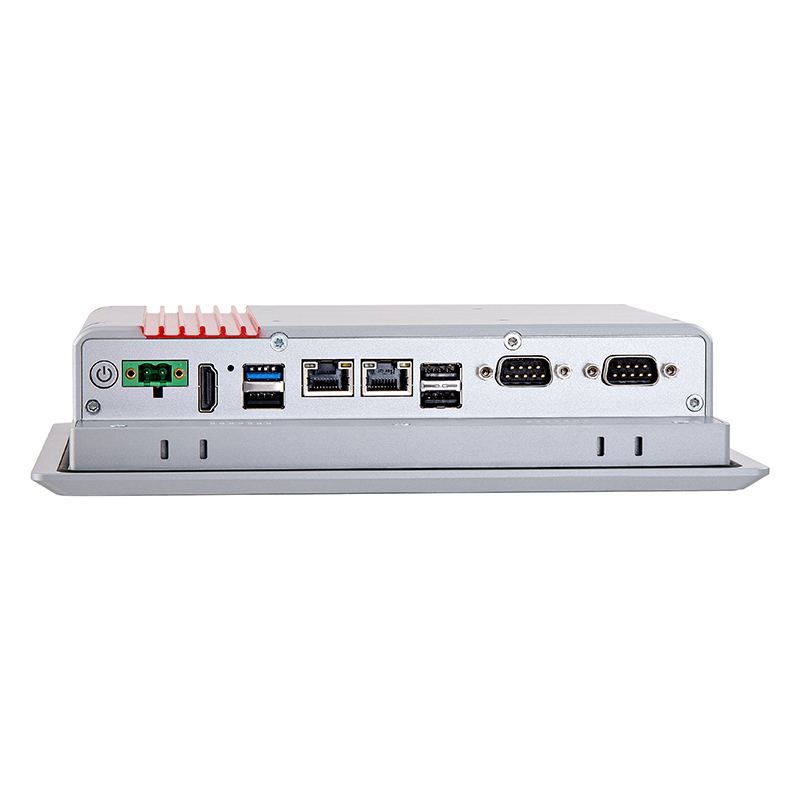

I/O Port |
1 x USB3.0, 3 x USB2.0 2 x DB-9 COM1&COM2,RS-232/485(Optional 6xCOM) 1 x Audio Line-out/Mic-in 2 x 8Ω 1W Audio AMP out(Optional) 1x HDMI 1x Clear CMOS |
|
|
Storage *3 |
1 x MSATA SSD 1x SATA( 2.5”SATA) |
|
|
Expansion Slot |
Mini-PCle x 1 full size with SIM Card for 3G/4G Mini-PCIe x 1 half size for WIFI, Bluetooth |
|
|
Watchdog timer |
255 Levels |
|
|
OS Support |
Windows® 7/10/11,Linux |
|
|
Mechanical |
|
|
|
Construction |
Aluminum Design |
|
|
Mounting |
VESA 75/ Panel Mount |
|
|
Dimension |
230.3 x 177.3 x 50.5 mm |
|
|
Gross Weight |
1.7KG |
|
|
Environmental |
|
|
|
Operating Temperature |
0℃~60℃ |
|
|
Storage Temperature |
-30℃~70℃ |
|
|
Storage Humidity |
10~90%@30℃, non-condensing |
|
|
Power Supply |
|
|
|
DC input |
DC 9~ 36V 2-pin Phoenix Connector |
|
|
LCD |
|
|
|
Display Type |
8”TFT-LCD |
|
|
Resolution |
800 x 600 ( Optional 1024x768 ) |
|
|
Max.Colors |
16.2M |
|
|
Luminance |
250 cd/m2 |
|
|
Viewing Angle (CR>=10) |
-85～85°(H),-85~85° (V) |
|
|
Back Light |
LED |
|
|
Back Light MTBF(Hours) |
30,000 |
|
|
Touchscreen |
|
|
|
Type |
Flat 5-wire Resistive |
P-CAP Multi Touch |
|
Light Transmission |
78% |
>85% |
|
Life Time |
>5 million activations |
7H |
