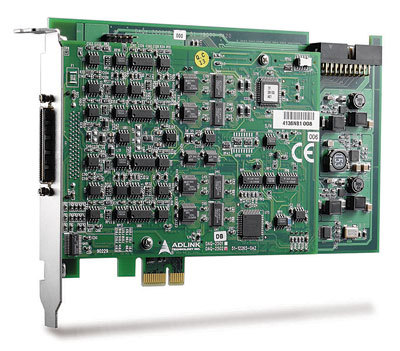

ADLINK Technology PXI/DAQ/DAQe-2500 Series
The PXI/DAQ/DAQe-2500 Series are high-speed, high-performance analog output multifunction DAQ cards capable of maintaining a 1 MS/s update rate while simultaneously outputting analog signals across up to 8 channels at 12-bit resolution. Each channel features programmable reference sources and output polarity. With multiple DAC architectures, these DAQ cards can generate complex modulated analog signals.
Hardware-based arbitrary waveform generation reduces CPU load—even when updating all analog outputs at full speed—with waveform length limited only by system memory.
The PXI/DAQ/DAQe-2500 Series integrates:
Up to 8 channels of 14-bit single-ended analog input at 400 kS/s with programmable polarity
24 channels of programmable digital I/O lines
Two 16-bit general-purpose timer/counters
These cards support full-speed simultaneous analog input and output and enable multi-card synchronization via the SSI (System Synchronization Interface) bus. An auto-calibration feature adjusts gain and offset to specified accuracy ranges without requiring manual potentiometer calibration.
