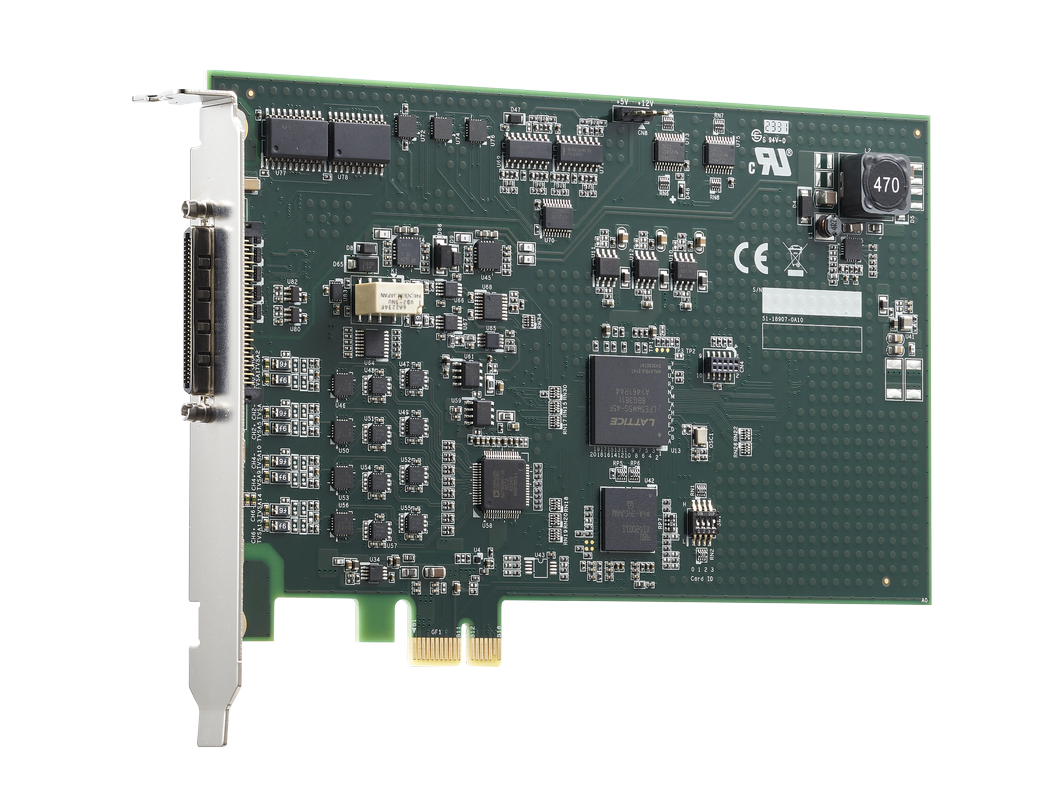

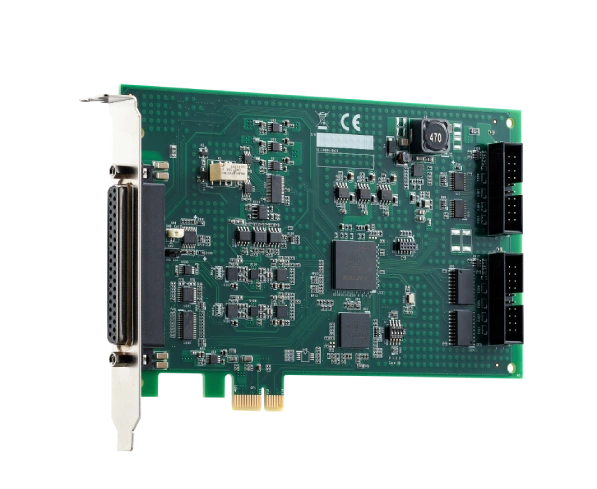

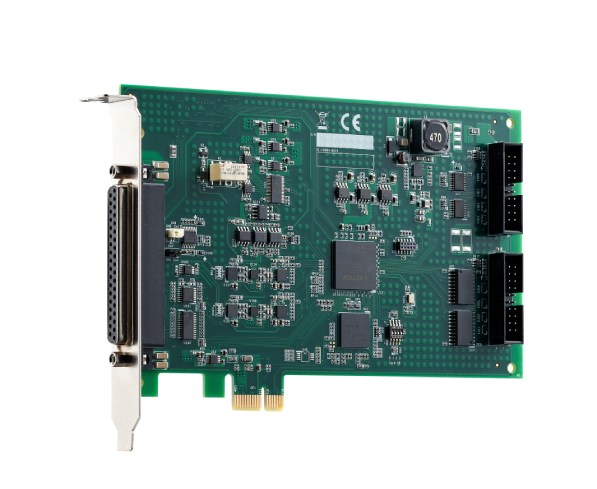

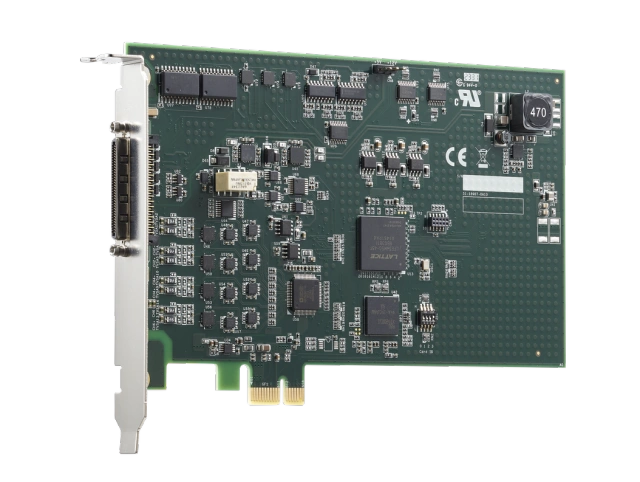

Multifunction Data Acquisition Card PCIe-9100 Series – High-Speed Interface for Advanced Motherboard PC Systems

Key Features

PCI Express bus interface

High-density design integrating AI/AO/DI/DO functions in a single card

High precision with up to 16-bit resolution ADC and DAC

Wide programmable input voltage ranges: 10V, 5V, 2.5V, 1.25V, 0.625V, 0.3125V

Up to 2 encoder channels for simple motion control (supports CW/CCW, x1/x2/x4 AB-phase encoders)

Direct Memory Access (DMA) channels to reduce CPU load

Fully automatic calibration

Board ID switch

The PCIe-9100 Series are multifunction data acquisition cards with PCI Express interface for industrial applications. Their high sampling rates, high resolution, and high-density I/O design enable customers to easily integrate multiple functions into a single card for various applications including data logging, process control, and condition monitoring.


Accelerated Data Throughput with PCIe Interface
The PCIe-9100 Series utilizes a PCI Express interface to deliver real-time high-speed data acquisition. It integrates seamlessly with your motherboard pc, whether custom-built or sourced from a best motherboard manufacturer. This device enhances system responsiveness in machine control, diagnostics, and industrial I/O applications.

Modular Analog and Digital Signal Support
With multifunction I/O channels including analog input/output, digital input/output, and counter/timer capabilities, the PCIe-9100 Series offers exceptional flexibility. Designed to support a wide range of control schemes, it fits perfectly into any pc motherboard ecosystem built for high-speed I/O processing and robust signal synchronization.

Designed for Harsh Industrial Environments
Built with ±15kV ESD protection and up to 2500V isolation, this acquisition card guarantees safe and stable performance in tough electrical environments. Whether you’re using a commercial-grade motherboard or industrial pc motherboard, reliability remains uncompromised.

Flexible Software Integration for System Developers
The PCIe-9100 Series supports Windows and Linux drivers, with SDKs available for LabVIEW, Visual Studio, and Python. This ensures it works smoothly with control systems from top motherboard manufacturers, while maintaining scalability and speed.


Product Advantages

High-Speed PCIe Connectivity for Demanding Applications
The PCIe-9100 Series delivers consistent, low-latency data flow. It enhances the performance of systems using motherboard pc configurations from industry-leading motherboard manufacturers.

Flexible I/O Configurations to Match Complex Systems
Its multifunction support ensures this card meets varied signal demands in test benches and automation lines, especially those running on custom pc motherboard setups or premium-grade motherboard systems.

Rugged, Isolated Design for Industrial Protection
With ESD and isolation safeguards, the device protects core circuits in challenging environments, making it ideal for systems built by the best motherboard manufacturer for maximum resilience.

Superior Compatibility with Development Environments
Whether it's LabVIEW-based prototyping or embedded control in Python, this acquisition card offers developers the tools to expand fast. It’s a developer favorite for enhancing motherboard pc projects.

Trusted by Industrial Control Engineers Worldwide
The PCIe-9100 Series stands out among multifunction DAQ solutions used with high-performance motherboard platforms. It's consistently selected by clients seeking top-tier quality from recognized motherboard manufacturers.


Upgrade your control and test systems with the Multifunction Data Acquisition Card PCIe-9100 Series – High-Speed Interface for Advanced Motherboard PC Systems. Contact us now to order or request a tailored solution!
